Customizable Aluminum Roller Shutter Door with Heat Insulation and Weather Resistant Features

Ürün Ayrıntıları

Sertifika: CCC, ISO9001, CE

Ödeme ve Nakliye Şartları

Min sipariş miktarı: 50

Fiyat: 53.5

En İyi Fiyatı Alın

Şimdi İletişime Geçin

Özellikler

Açıklama

Özellikler

Vurgulamak:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          Customizable Aluminum Roller Shutter Door, Heat Insulation Rolling Shutter Door, Weather Resistant Security Roll up Shutter Door


Model No.:	SAI77	Malzeme:	Alüminyum alaşımı
Tip:	yuvarlamak	Açık stil:	yuvarlamak
Açılış türü:	Uzaktan kumanda ile	Çıta Genişliği:	65mm
Çıta kalınlığı:	1.2mm	Kılavuz Ray Boyutu:	8036mm veya 9036mm
motor kapasitesi:	400kg, 600kg, 800kg, 1000kg, 1300kg, 1500kg, 2000kg	Motor voltajı:	220V/50Hz, 380V/50Hz, 110V/60Hz
Tübüler motor tork:	60n, 80n, 120n, 140n, 230n, 300n	Şaft çapı:	3 inç, 5 inç, 6 inç, 8 inç, 10 inç
Yüzey kaplaması:	Bitmiş	Üretim kapasitesi:	5000 metrekare/ ay
Çıta Rengi:	beyaz, bej, özel yapım

Model No.:	SAI77
Malzeme:	Alüminyum alaşımı
Tip:	yuvarlamak
Açık stil:	yuvarlamak
Açılış türü:	Uzaktan kumanda ile
Çıta Genişliği:	65mm
Çıta kalınlığı:	1.2mm
Kılavuz Ray Boyutu:	8036mm veya 9036mm
motor kapasitesi:	400kg, 600kg, 800kg, 1000kg, 1300kg, 1500kg, 2000kg
Motor voltajı:	220V/50Hz, 380V/50Hz, 110V/60Hz
Tübüler motor tork:	60n, 80n, 120n, 140n, 230n, 300n
Şaft çapı:	3 inç, 5 inç, 6 inç, 8 inç, 10 inç
Yüzey kaplaması:	Bitmiş
Üretim kapasitesi:	5000 metrekare/ ay
Çıta Rengi:	beyaz, bej, özel yapım

Açıklama

Customizable Aluminum Roller Shutter Door with Heat Insulation and Weather Resistant Features

Insulated Aluminum Rolling Shutter Door / Security Roll Up Shutter Door

Warehouse Aluminum Alloy Shutter Door

High-quality insulated aluminum rolling shutter doors designed for security, weather resistance, and thermal insulation.

Applications

Ideal solution for various commercial and industrial applications:

Commercial shops
Factories
Warehouses
Residential garages
Club bars

Key Features

Safety and security
Theftproof design
Heat insulation
Weather resistant
Rustproof construction
Sound insulation

Technical Specifications

Item Name	Specifications

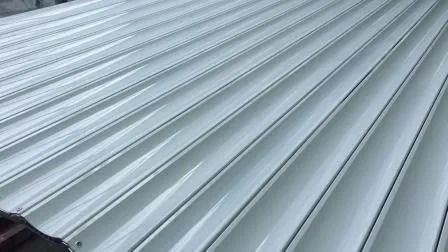

Slat	Width: 65mm Thickness: 1.2mm Color: white, beige, custom-made colors
Aluminum Bottom Rail	Made of extruded aluminum
Aluminum Guide Rail	Heavy duty extruded aluminum "U" guide rail (8036mm or 9036mm) Includes brush strip for quiet operation
Switch Button	Stainless steel cover box
Endless Chain	Manual operation option when power is off
Rolling Shutter Motor	Option 1: HOFUL brand side motor (CE certified) Capacities: 400KG-2000KG Voltage/Frequency: 220V/50Hz, 380V/50Hz, 110V/60Hz Option 2: DOOYA tubular motor (CE certified) Capacities: 60N-300N Voltage/Frequency: 230V/50Hz, 120V/60Hz
Shutter Box (Hood)	Galvanized steel or aluminum (optional)
Shaft (Barrel)	Galvanized steel, sizes: 3", 5", 6", 8", 10" (size dependent on door dimensions)
Bearing	Retractable, welded according to shutter width
End Plate	Heavy duty steel, fixed on both sides of shaft
End Clip	Plastic, prevents lateral movement of curtain

Product Details

Certifications

Frequently Asked Questions

What is the delivery time?

20 days for standard colors and 30 days for customized colors. Delivery time depends on order specifications and quantity. Final shipment time varies by customer location.

What are your payment terms?

Standard terms are 30% deposit by T/T with balance paid before delivery. Alternative arrangements can be discussed.

Can we place one or two sets for trial?

Yes, trial orders are welcome. We also offer free samples (customer pays freight) for quality verification.

How can I get an exact price?

Pricing depends on specific requirements including color, size, quantity, and destination market. Please provide detailed information for an accurate quote.

Can I order components instead of full door sets?

Yes, we supply individual components such as panels, hardware, and motors for business clients.
